| General | |
|---|---|

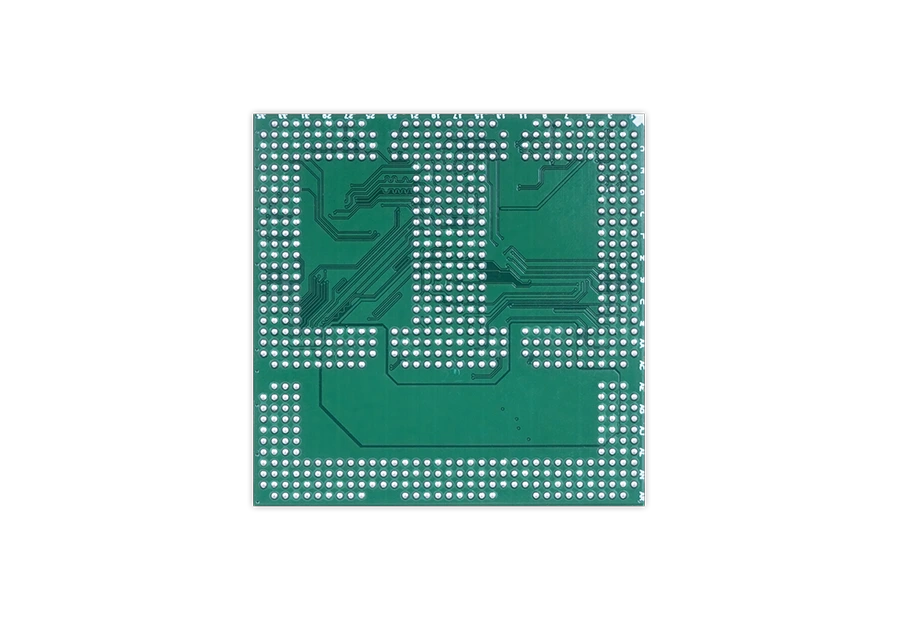

| OSM Standard | OSM v1.2, Size-L SoC Module, 662-pin LGA, 45 mm × 45 mm |
| Processor | MediaTek Genio 720: 2× Cortex-A78 @ 2.6 GHz + 6× Cortex-A55 @ 2.0 GHz |
| AI Engine (NPU) | Integrated MediaTek 8th-generation NPU, up to 10 TOPS total system AI performance, optimized for edge AI and generative AI tasks |
| GPU | Arm Mali-G57 MC2 GPU, performance-tuned graphics supporting ultra-high resolution (single 5K or dual 2.5K) |
| Memory | 8GB LPDDR5 |
| Storage | 128GB 3.1 UFS(256GB/512GB Optional) |
| Operating Temperature | −40°C ~ 85°C |
| Operating System | Embedded Linux (Yocto) |
| Hardware Interfaces | |
| Display | MIPI-DSI/LVDS, eDP |
| Camera | MIPI-CSI |
| Peripheral Interfaces | PCIe, USB, CAN, I²C, UART, SPI, SD, I²S, PWM, GPIO |
