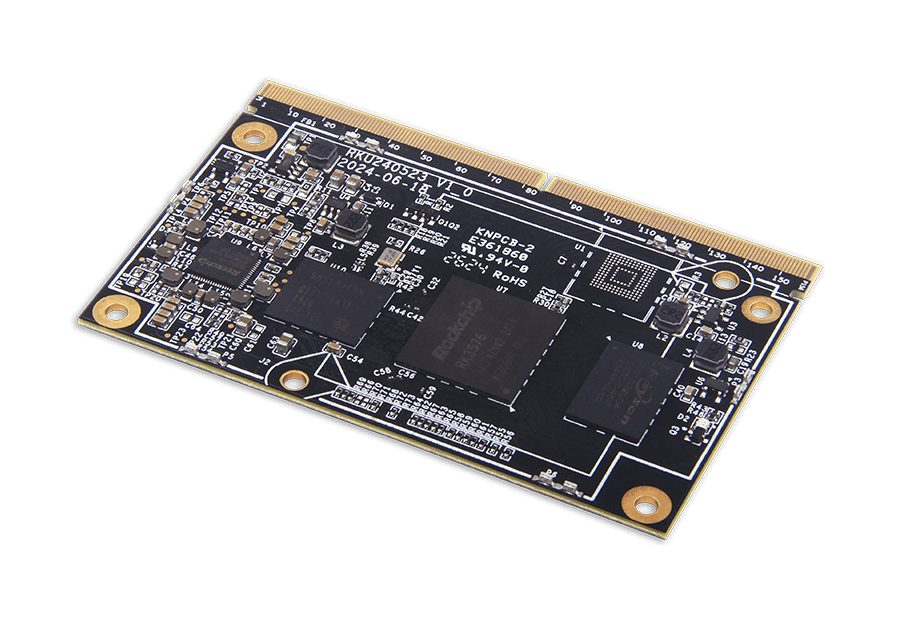

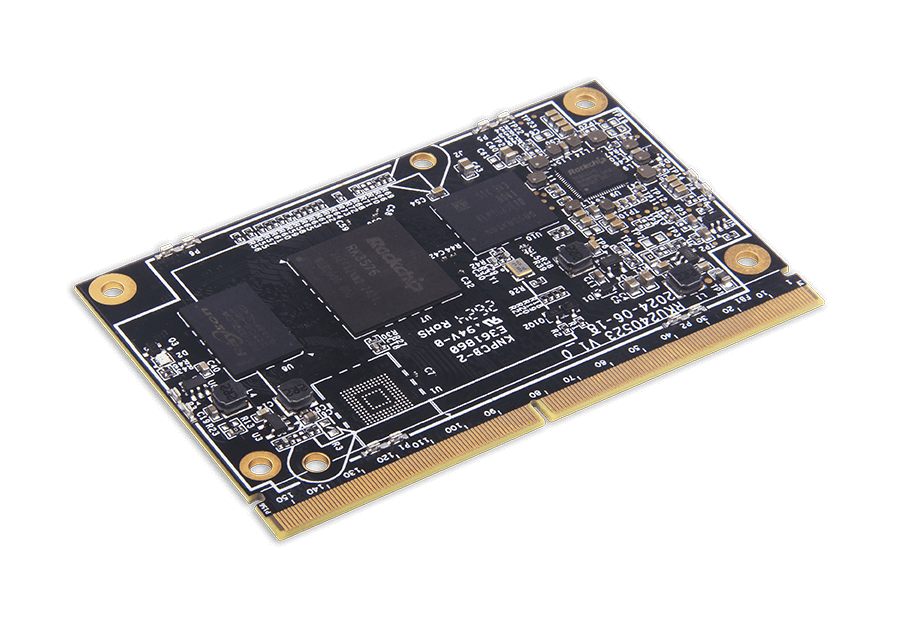

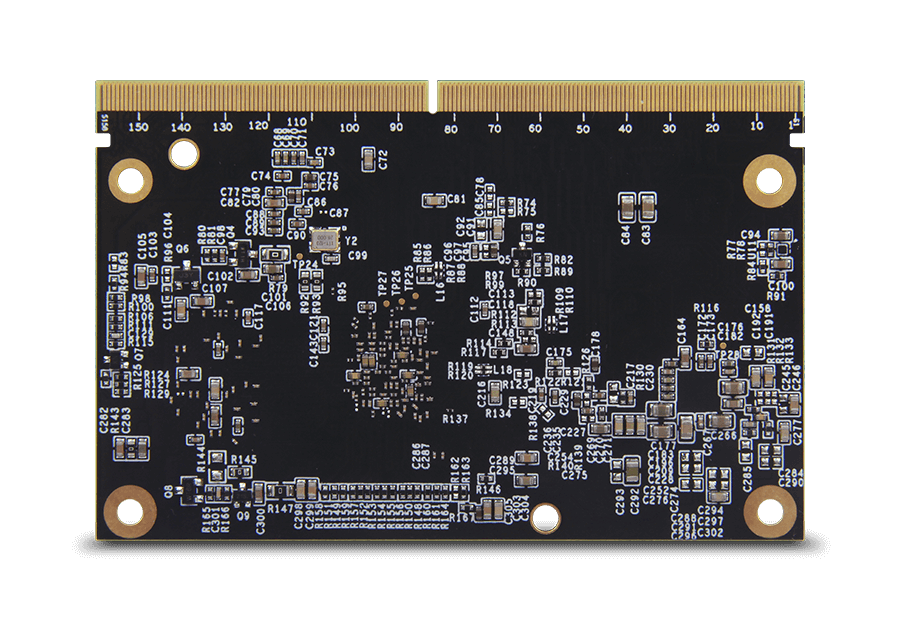

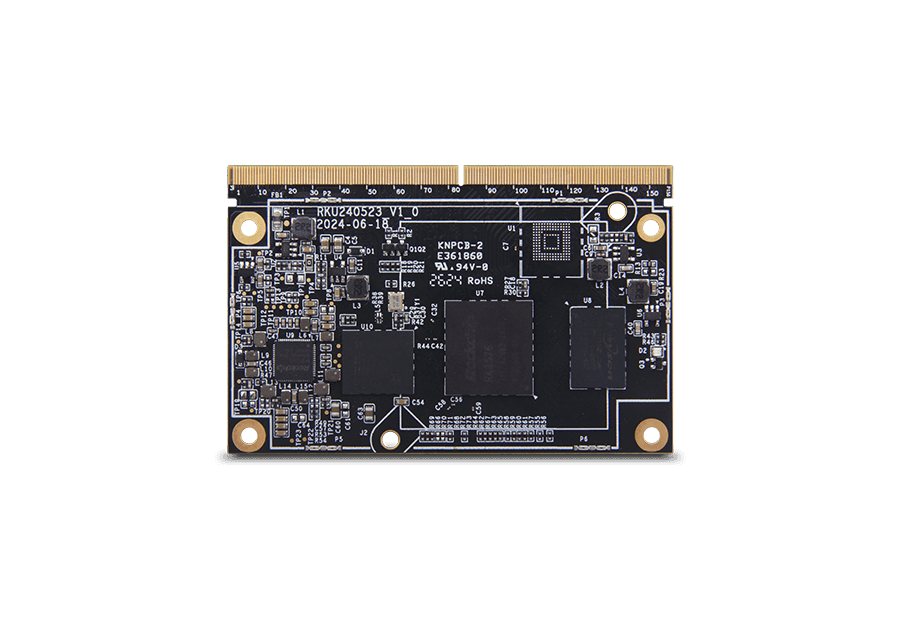

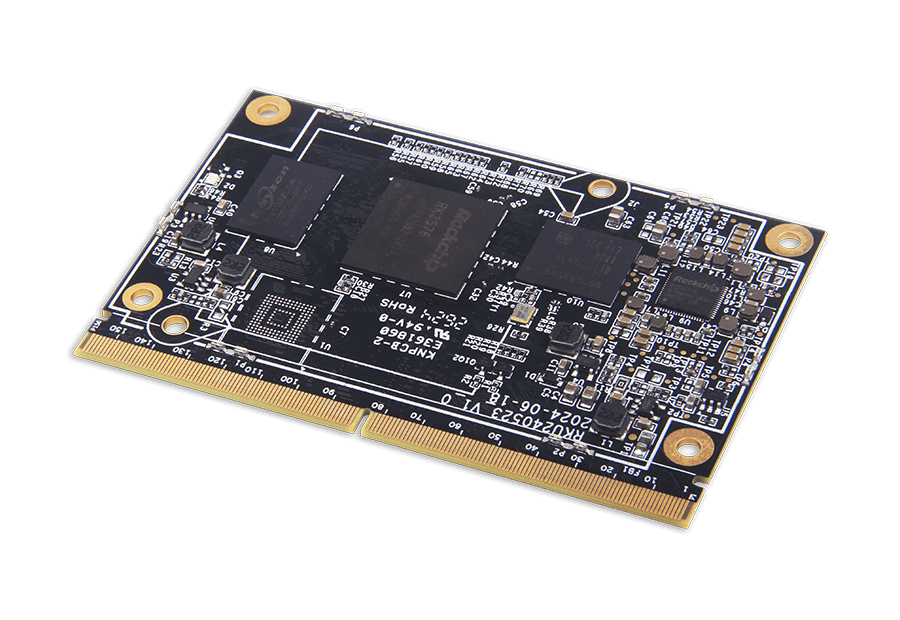

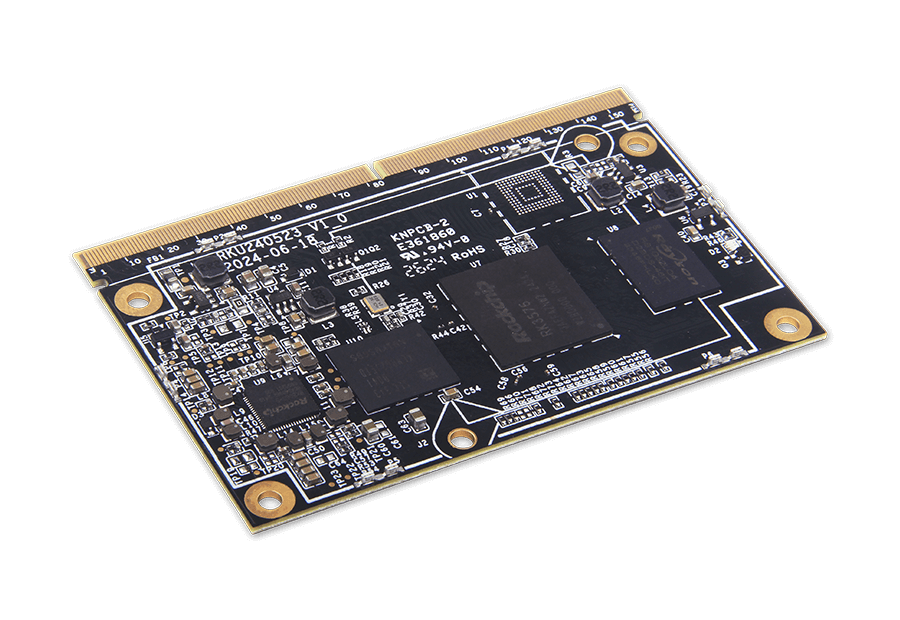

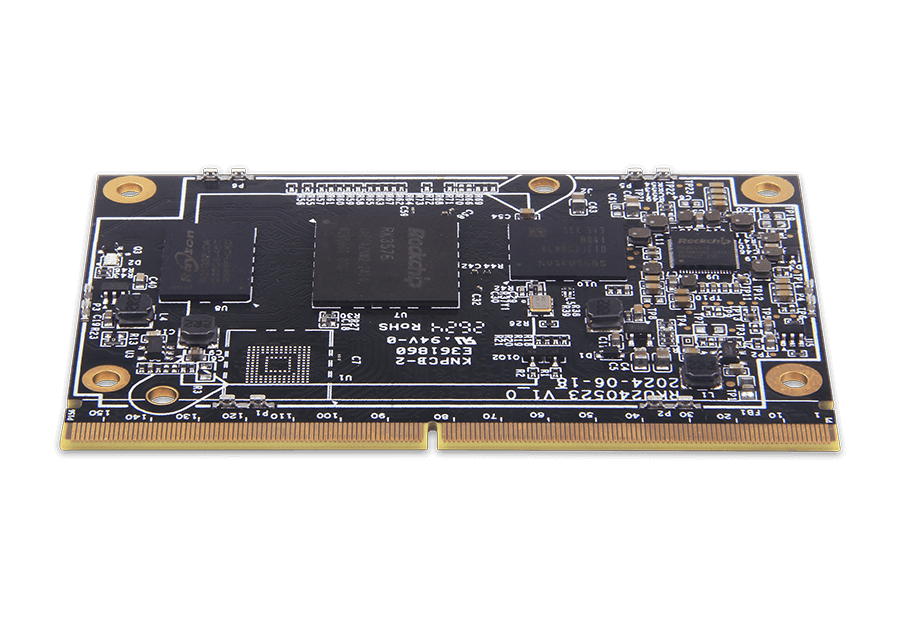

SOM-3576核心板
・瑞芯微RK3576(ARM 4核Cortex-A72+4核Cortex-A53)处理器
・内置6TOPS NPU
・支持Android 14和Debian 12
・最高支持16GB LPDDR内存,32~256 GB EMMC闪存
・支持双千兆、WiFi6、MIPI-CSI、MIPI-DSI图形输出
・集成PCIe/SATA/GMAC/SDIO3.0/USB3.0S等丰富外设接口
・支持8K@60fps视频解码和4K@60fps视频编码
・标准SODIMM接口,尺寸仅为82毫米x53毫米
CPU | Rockchip RK3576 Octa-core configuration with 4x Cortex-A72 and 4x Cortex-A53 |
GPU | ARM Mali-G52 MC3 with support for OpenGL ES 1.1, 2.0, 3.2, OpenCL 2.0, and Vulkan 1.1 |
NPU | 6 TOPS AI accelerator supporting INT4/INT8/INT16/BF16/TF32 mixed operations and framework switching of TensorFlow / MXNet / PyTorch / Caffe |
存储规格 | RAM: 4GB(8/16G Optional) Storage: 32GB(64G/128G/256G Optional) |
编解码 | Video Decoder: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K @ 30fps or 4K @ 60fps Video Encoder: Supports H.264 and H.265 up to 4K @ 60fps, (M)JPEG encoder/decoder up to 4K @ 60fps |
通讯方式 | Ethernet: 2x Gigabit Ethernet ports Wi-Fi: Wi-Fi 6 Bluetooth: Bluetooth 5 USB: 1x USB 3.0, 1x Type-C Other interfaces: PCIe, I2S, SDIO, SATA, SPI, I2C, DEBUG |
视频输出 | HDMI OUT*1( 7680×4320@60Hz) HDMI IN*1(4096x2160p@60Hz) eDP*1 up to 4K @ 60Hz LVDS up to 4K @ 60Hz MIPI DSI connector up to 2K @ 60Hz |
视频输入 | 2x 2-lane MIPI CSI connectors |
支持系统 | 支持OS :Android14 / Debian12 |
外观 | 尺寸: 82 x 53 mm 板子结构: SDIOMM 314Pin standard core board |
环境温度 | Commercial: 0~60°C Industrial: -40~85°C |
开发工具 | Carrier board, Board Support Package (BSP), and extensive documentation |
功率 | 5V/3A |
